At a Glance
- Simple 4” or 8” Adjustments – Element panels with built-in cut lines make wall height changes fast, accurate, and waste-free.
- Proven Techniques – Use cut panels with flat edges down for 4” top-ups, or cut full blocks in half for solid 8” courses—with Flexties reinforcing both options.
- Purpose-Built Solutions – The 4” Height Adjuster gives you an easy add-in course, designed with interlocks for strength and smooth stacking.
- Built-In Flexibility – Element ICF makes elevation tweaks stress-free: no extra math, no wasted material, just confident building in clean 4” increments.
When you’re building with insulated concrete forms (ICFs), not everything falls neatly into 16″ increments. Need to add 4″ or 8″ to your wall height? No problem. With Element ICF, making those adjustments is fast, efficient, and straightforward—no overthinking, no waste.

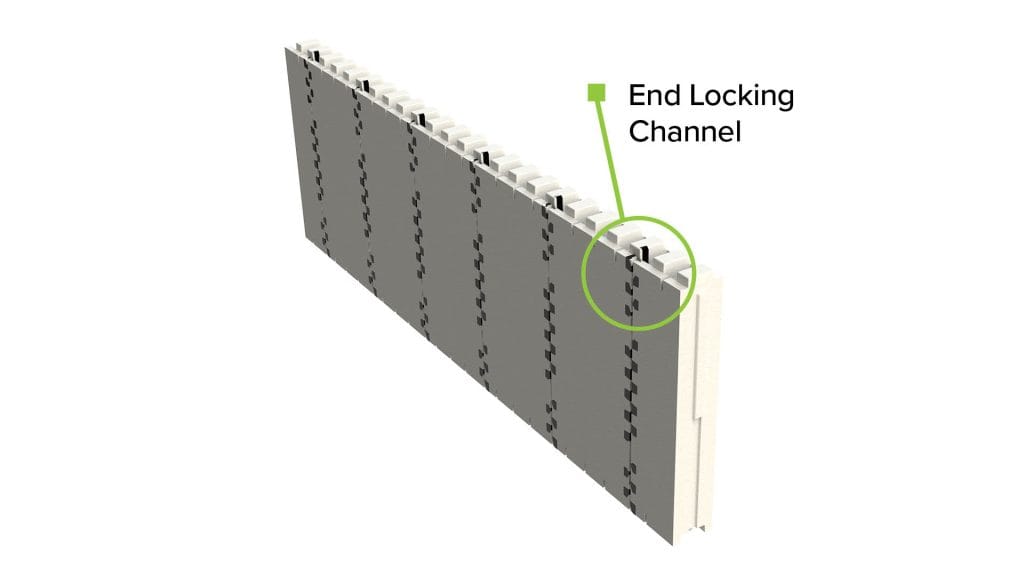

For best results, we recommend using panels to create these height extensions. Why? Because panels include end locking channels—which allow you to install additional Flexties at the vertical seams, providing important additional support for these site-fabricated 8″ and 4″ height increments.
Use Element Panels to Get the Height You Need
Element panels are your go-to solution for quick height adjustments. A very efficient option is to cut them to size and install them as the first row of your wall.

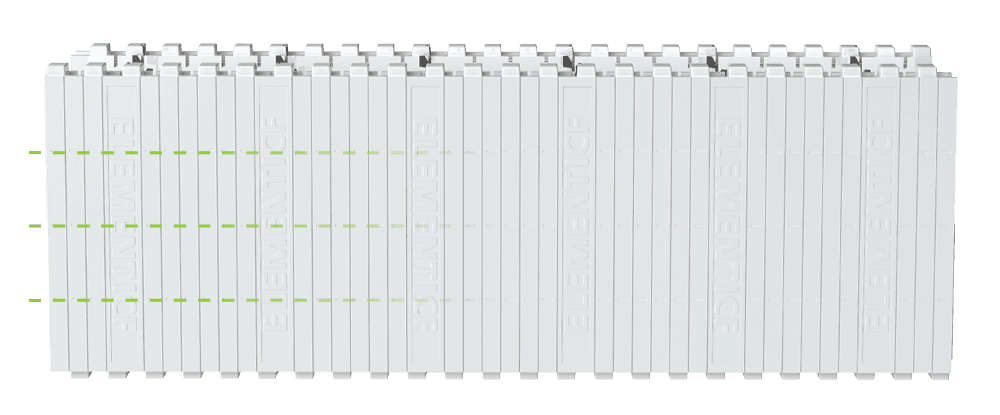

Built-in Cut Lines Make It Easy
Every Element panel includes embossed horizontal cut lines every 4”.
- For an 8” addition, cut on the center line
- For a 4” addition, cut on one of the other lines
When you cut, you will get one flat edge and one edge with an interlock.
Pro tip: Install flat edge down on your first row—no need to account for interlock (½”) height in your wall math

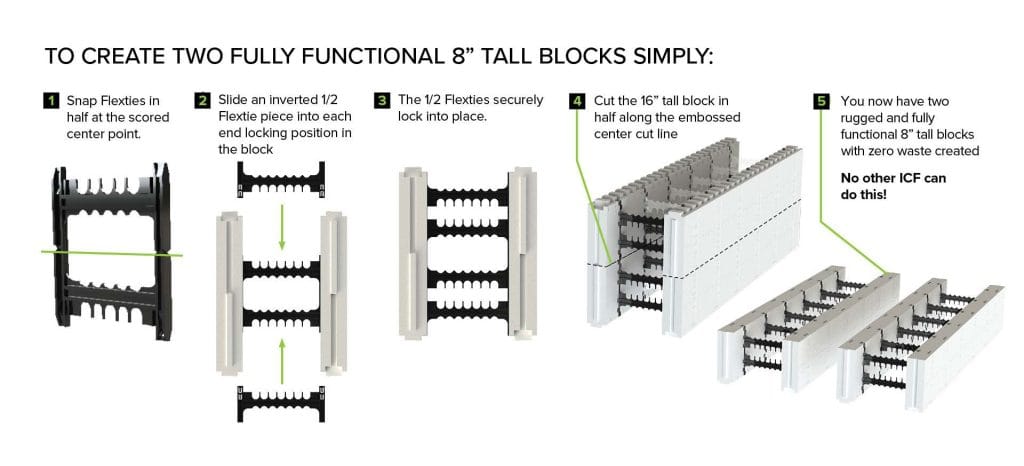

The Best Way to Make 8" Half-Height Blocks

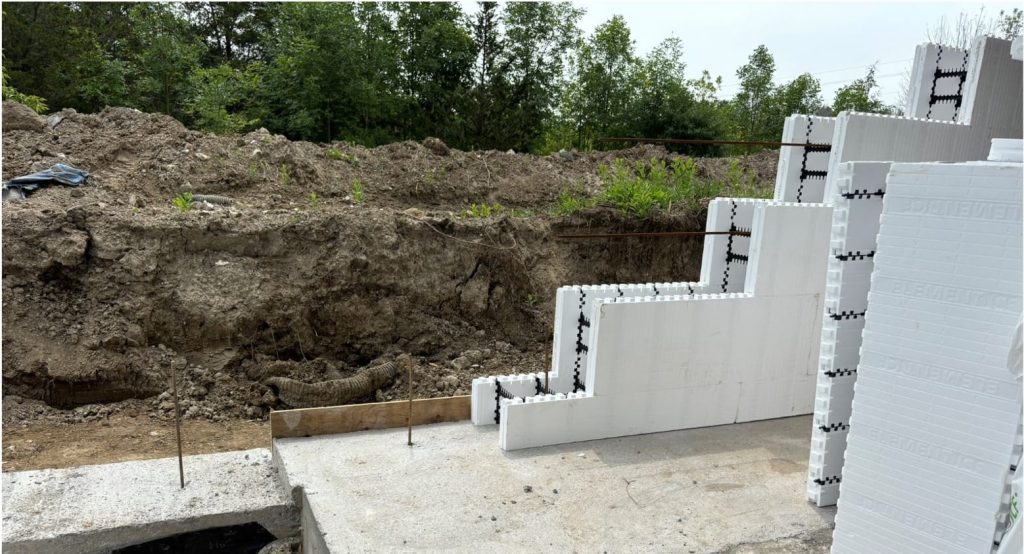

Need an 8″ height adjustment on your ICF wall? The cleanest, most consistent method is to fabricate your own half-height blocks on-site using standard panels.
Here’s how it’s done:
Assemble a full-height block using Element ICF panels

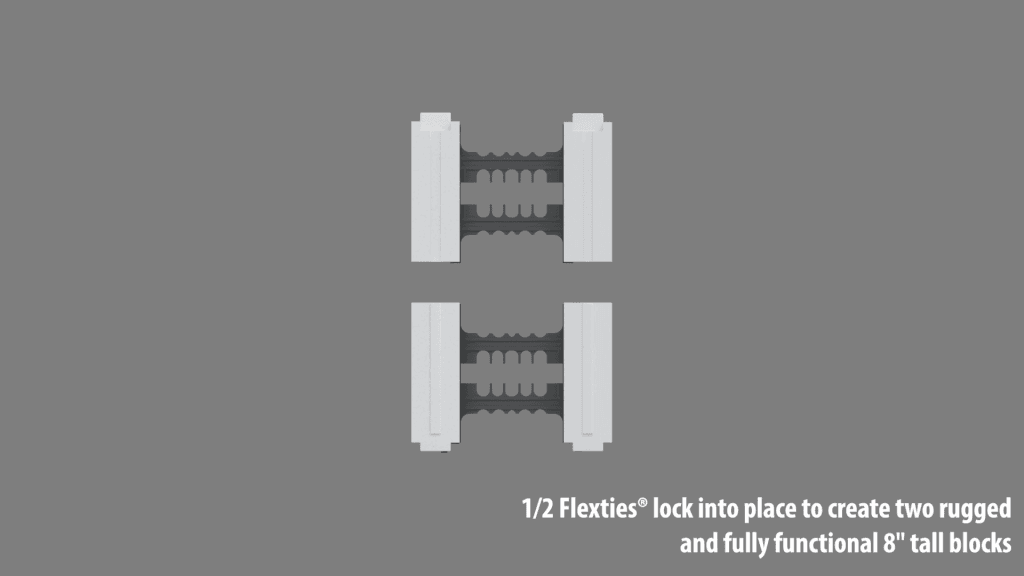

Snap standard Flexties in half, and insert a half into the End Locking Channels to reinforce both halves. This is very important to provide additional forming strength to the upper portion of this half-height block.
- Cut it in half horizontally using a table saw
See How to Make a 8″ Half-Height Block

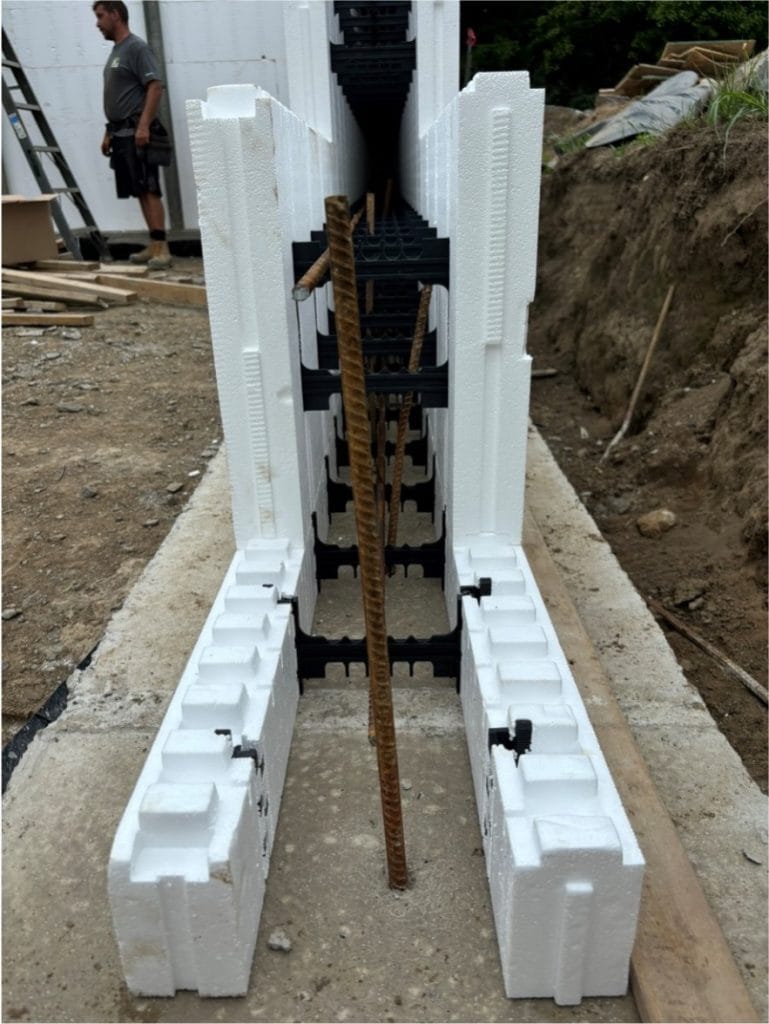

Best Way to Make 4” Panel Pieces with a Flat Edge
When you need to fine-tune wall height by just 4″, this quick and reliable panel-cutting method delivers clean results without compromise.
Here’s how it’s done:
- Cut the Element panel using the embossed 4″ guideline.
- Place flat edge down.
- Insert ½ Flexties into the core to maintain strength.
- This technique works beautifully for both standard walls and fine-tuning top-ups.

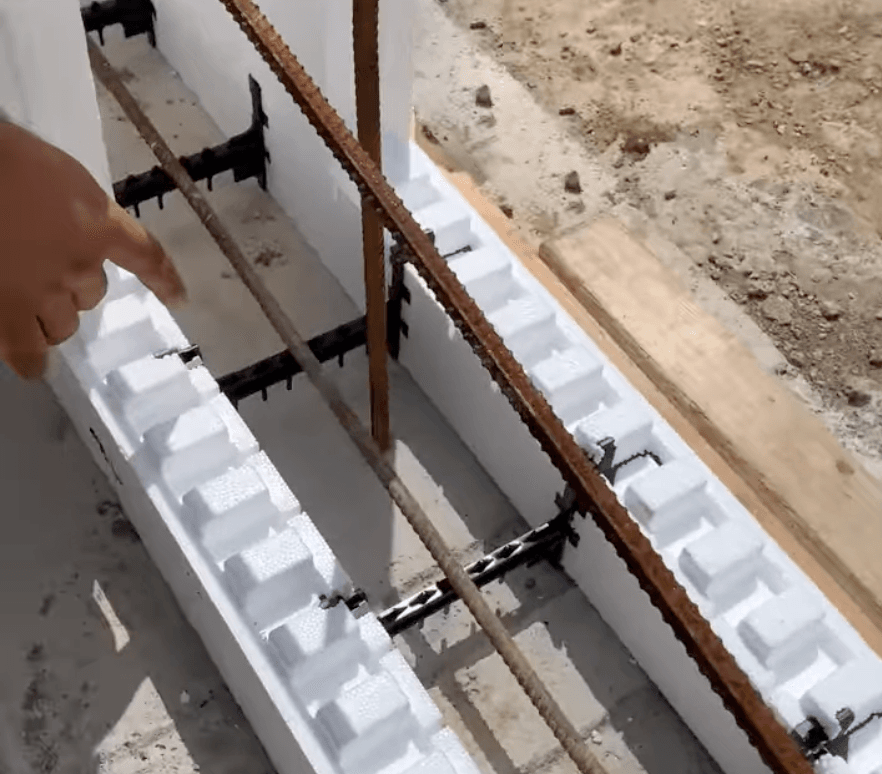

See How Deven Mcintyre from Eastern Ontario ICF added 4″ to his Build
Don't miss a thing
Sign up to receive the latest info on new Element ICF products, special offers and more.

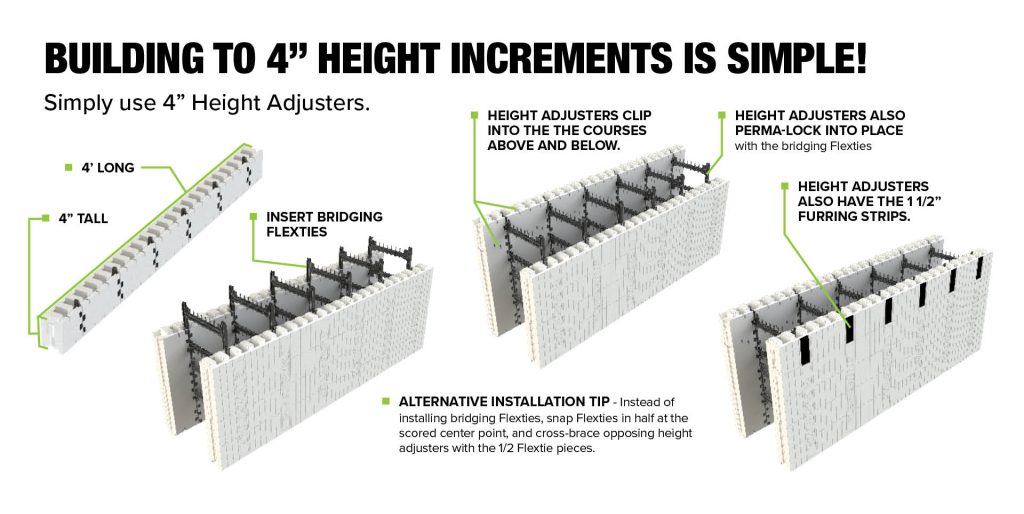

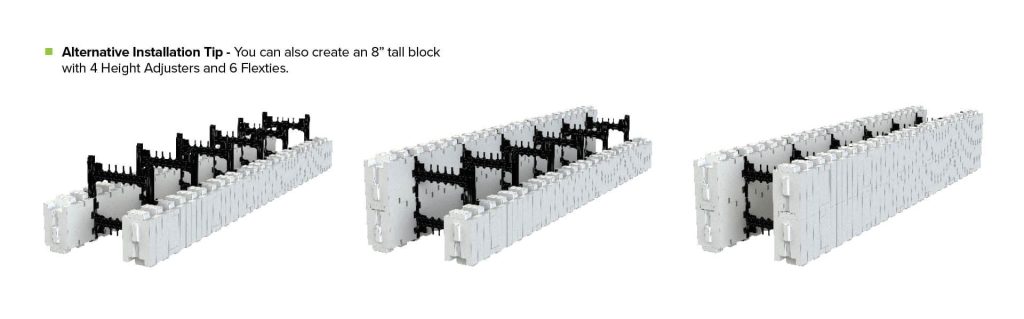

Don’t Forget: The 4” Height Adjuster Is Also an Option
We also offer a purpose-built 4” Height Adjuster. It’s easy to use—but keep in mind:
- It includes interlocks on both ends
- That means it adds an extra ½” to your wall height if used in the bottom row. Our purpose built 4” Height Adjuster is more efficiently used as a 4” course within the wall.
Wrap-Up: Flexibility Built In
Wall height changes don’t have to slow you down. With Element ICF:
- You can build in 4” increments with zero waste
- Choose the method that fits your job
- Maintain full strength and smooth interlocks
- And skip the complicated math or extra materials
Whether you’re topping off a tricky elevation or fine-tuning a design detail, Element makes it simple.
Build it once. Build it right. Build it for life—with Element.
